Model CT-M
Series - moving bucket types, the testing subject inside
the bucket can move up and down to different zones
-
2
or 3 zones is available
-
LCD Touch Screen Controller
-
bucket moving up and down
-
different size of bucket is available
-
with RS232 interface for PC edit, control and data
storage
-
with USB port for flash card storage of
data

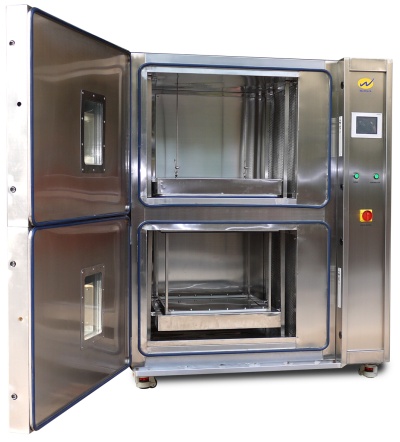

2 Zones Bucket Moving Type Thermal Shock
Chamber
| Model |
CT-27M2 |
CT-125M2 |
CT-320M2 |
| Performance |
Hot
Zone |
Temperature
Range |
up to
200C |
| Temp. Rise
Time |
from 20 to
200C about 40min |
| Cold
Zone |
Temperature
Range |
0 to
-70C |
| Temp. Fall
Time |
20 to -70C
about 30mins |
| Basket |
Basket Size
(HxWxD) |
30x30x30cm |
50x50x50cm |
50x80x80cm |
| Temperature
Range |
-65 to
180C |
| Temp. Fluctuation
|
+/-1C |
| |
Basket
Transfer Time |
<10S |
| |
Temperature
Recovery Time |
<15mins (with faster recovery time as
option) |
| Material |
Frame |
All 304
S.S. (both interior and exterior) |
| |
Insulation
Material |
Polyurethane foam and ultra-fine glass
wool |
| Refrigeration |
Cooling
Mode |
Two stage
water cooling compressor unit |
| |
Compressor |
Bitzer
compressors |
| Heater |
Nicket-chromium alloy heating wire |
| Blower |
Long axis
centrifugal fan |
| Temperature
Sensor |
PT100 |
| Controller |
LCD touch
screen |
| Computer
Interface |
RS232 |
| Power
Supply |
3 Phase 380Vac or 415Vac
|
Noted: For 3 Zones
thermal shock chamber, model number with -M3 at the end instead of
-M2.
|
